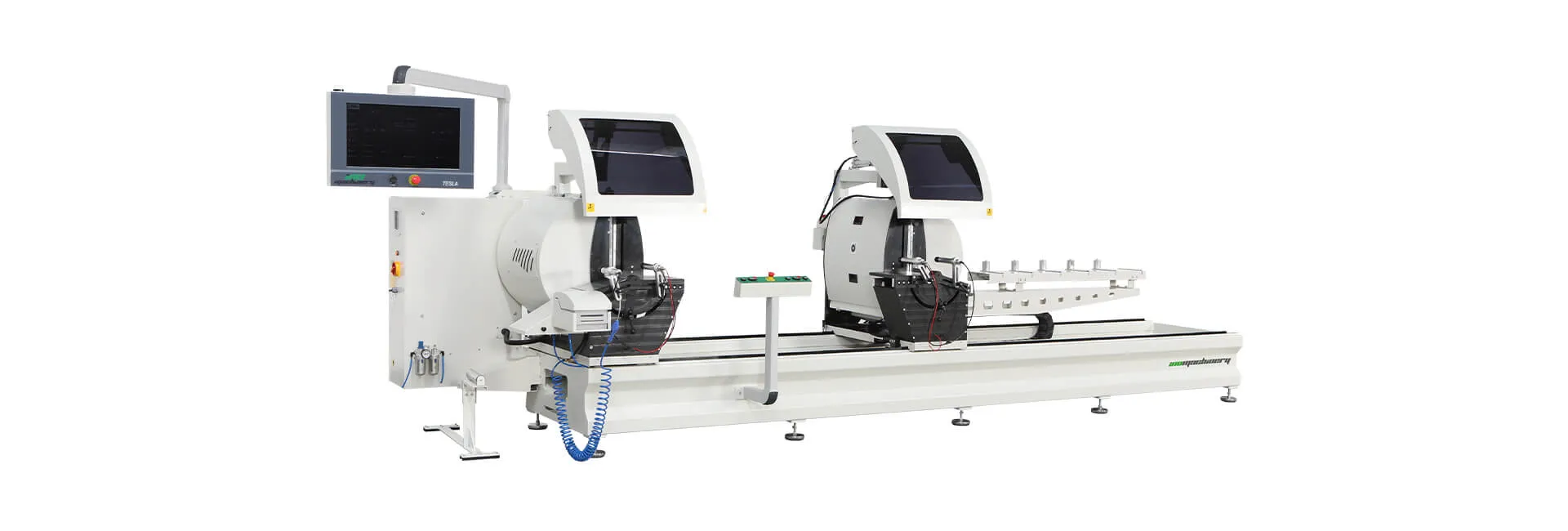

INO CUPRA Double Mitre Saw 45 – 90 – 135
Product Properties
Double mitre saw with 600 mm sawblades and 4.2 meter cutting length; customized for aluminium profiles.
Second head moving on linear guides via rack&pinion and servo drives.

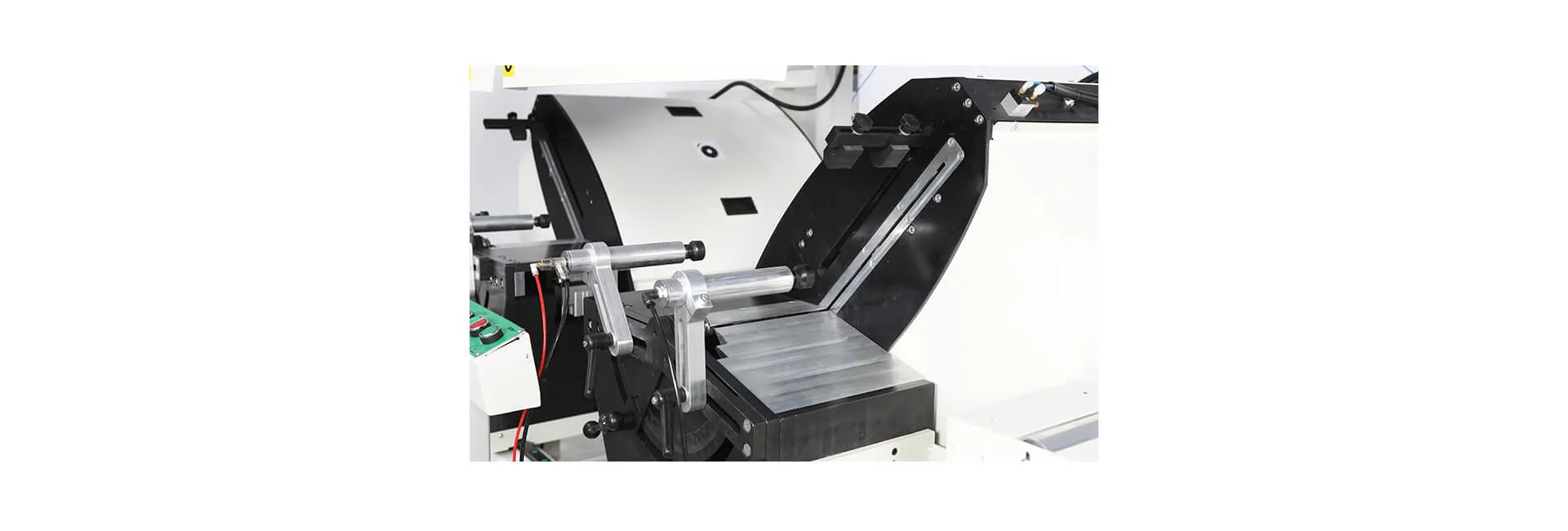

Both heads tilting inside and outside 45 and 90 degrees pneumatically.
Thanks to the fixed roller conveyor mounted on the secondary head and the manual supports, the profiles are placed on the machine easily and cut perfectly.
The machine can cut 4.2 meters in one shot and longer than that size up to 8 meters with software support.
Inbetween degrees are not possible on the machine as the 45 degrees both inside and outside are working with fixed mechanical stops for flawless 45 degree cuts. Thanks to 21.5″ TFT-LED Touchpanel and Windows 11 Computer, the CNC controller shows a cutting edge performance to maintain the perfect cutting size through a super user friendly interface.
This is a great machine combining accuracy on the angular inclanation and accuracy on the cutting size.
Profile Machining Software
The machine is controlled via PLC and a touch panel of 21.”.
The cutting dimension and the cutting degrees are entered to the machine by using this controller interface that is available in 8 different languages.
It is possible to enter a cutting-list to the machine manually or it is also possible to load cutting-lists via USB drive or LAN connection.
In this way the machine can import any data from any window production software.

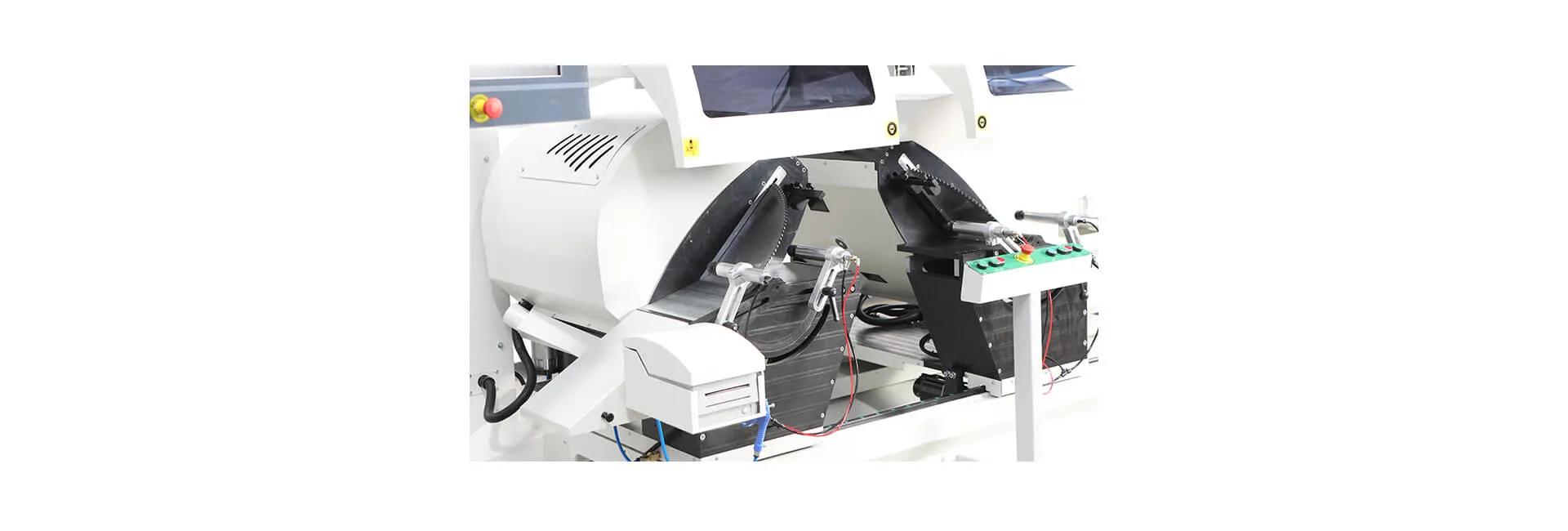

Thanks to the INO’s dedicated software, the machine can read all kinds of .csv or .txt files and produce labels for each cut piece.
Then those labels are read by the barcode reader of the CNC machining center and all the routing operations are identified without using any drawing software.
Machining Dimensions
The machine’s net cutting length is 4.000 mm., with software support it is possible to cut up to 8.000 mm.
Sawblade size: 600 mm.
Net cutting height is 385 mm, net cutting width is 200 mm. Minimum cut in 90 degrees with both heads at the same time: 609 mm.
Minimum cut in 45 degrees with both heads at the same time: 776 mm.
Minimum cut in 45 degrees with short piece cutting support: 386 mm.
Main Body
Electrowelded steel structure normalized with thermal treatment.
The main body of the machine is processed in 5 Axis CNC Cteel Machining Center.
All the body is painted with powder coating.
Mostly all the mechanical pieces are die-casted and machined in our own cnc machining centers.
During the design period our design team prioritize the operators’ ease of use and ergonomy of the machines in the first place.
We don’t only use steel and aluminium in the mechanical structure; but we also use fiberglass casted pieces to decrease the weight of the machining bridge and give the machine a more esthetic look.
Electrical Box and Controller Terminal
The electrics box is welded on the beginning of the machine body.
The controller terminal is also connected on the machine and it is movable according to the ease of use.
The operator can reach all the buttons, the touchpanel and place the profile by standing close to the controller terminal.
Standard Equipment
2 pieces 600 mm sawblades
Automatically moving safety covers
45-90-135 pneumatically inside and outside tilting cutting heads
2 pices horizontal profile clamping pistons
Manual support 1 piece
Extended cut for cutting longer than 4 meter profiles
Roller conveyor on the movable head
21.” TouchPanel HMI
Pulse spray mist coolant system
Cut-list programming manually
Data import via USB
